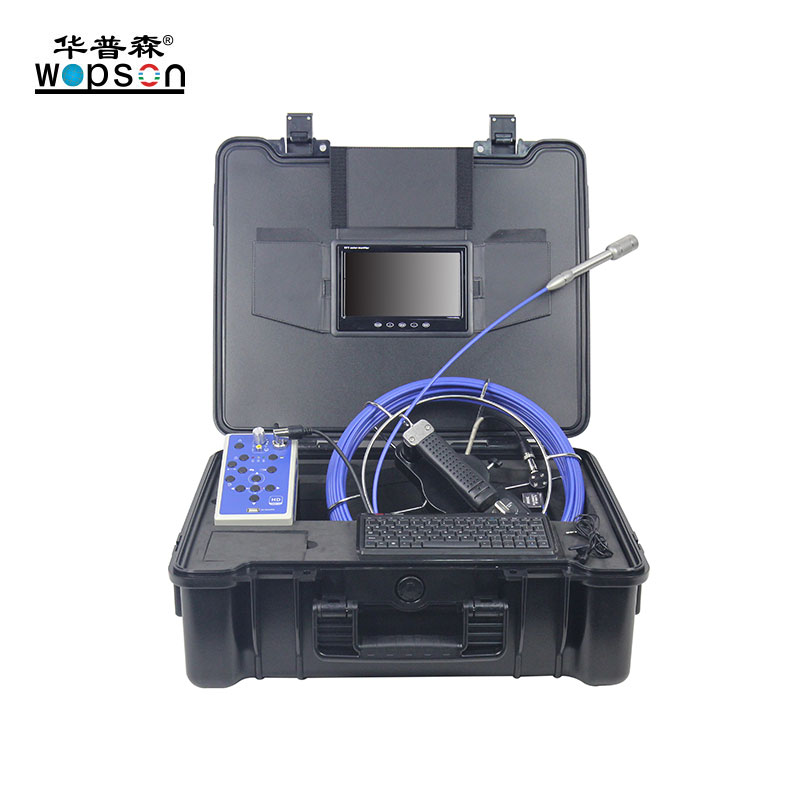

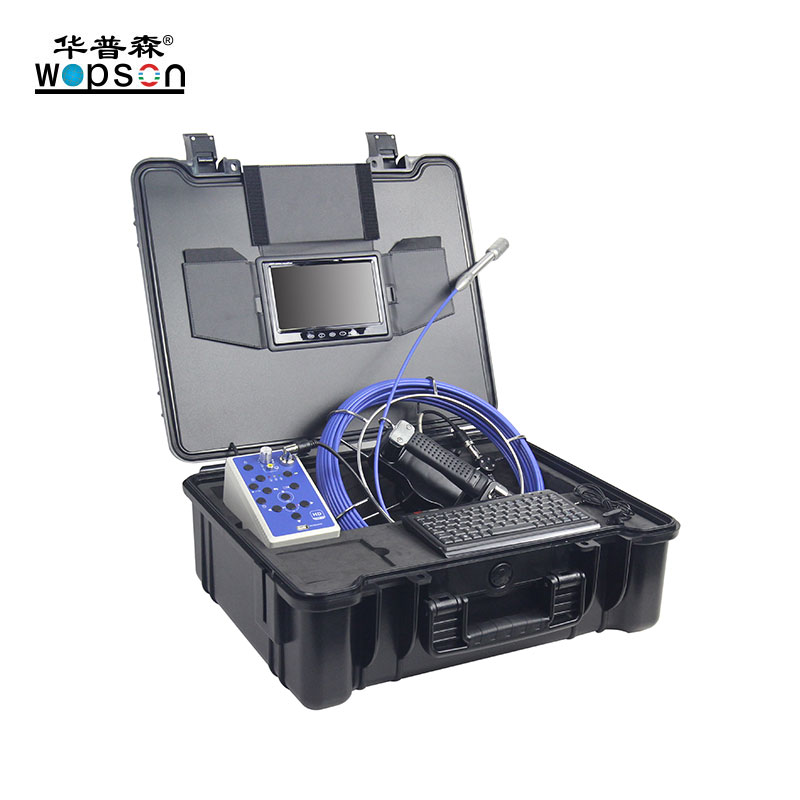

1280*720P HD Pipe Camera with Counter and Text

Product Name 1280*720P HD Pipe Camera with Counter and Text
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 1000 sets / month
Dilivery Time Depend on quantity
Package Carton package

Product Description

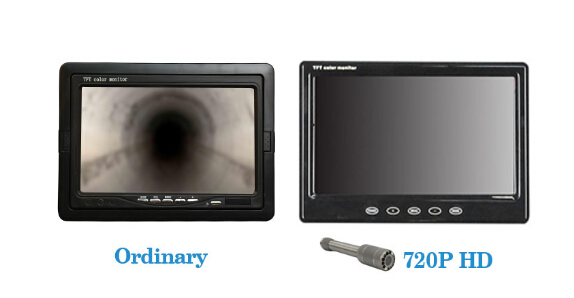

720P 23mm camera, 30/50m camera, 60-300 mm pipe, optional 6mm, 12 mm, 17mm, 28mm camera.

video/audio record and image capture, support max 256G  SD card or USB stick, cable m/ft counter and text


Specification

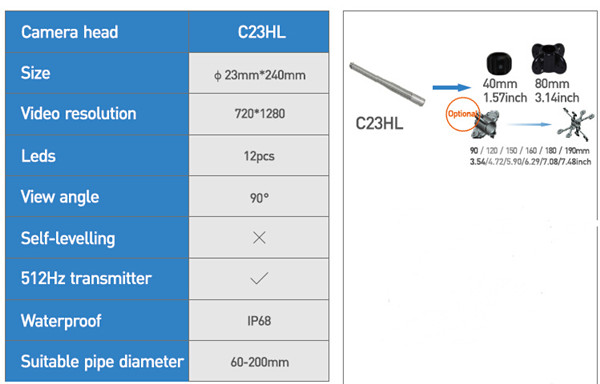

Camera & skid:

Camera size: ø23mm*144mm

Video resolution: 720*1280

Leds: 12pcs

View angle: 90°

Waterproof: IP68

Skids: 40/80mm

Suitable pipe diameter: 60-300mm

Control box:

Storage medium: 8G SD card (max 256G) &USB stickDVR total pixels: 720*1280

Movie format:AVI

Charger time: 5 hours

Running time: ≥7 hours

Cable reel:

Counter

Cable size: ø330*110mmCable length: 30m Cable diameter: ø5mmMax length: 50m



Display screen:

Screen size: 7 inch TFT color

 Screen pixels: 800*480

Case:

Size: L520*W435*H200mm

Case material:

Engineering plastic

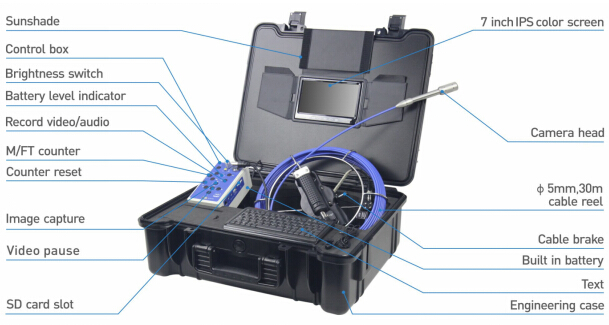

Features

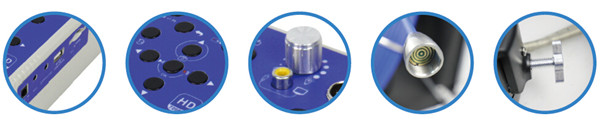

Details



Operation video or Strength video


Optional

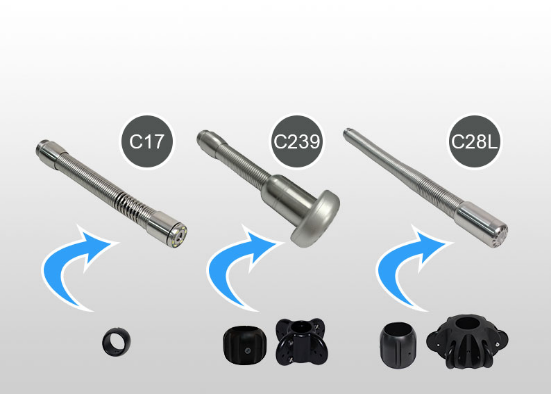

Pipe camera head



Model

Size

LEDs

View angle

Suitable pipe diameter

Other function

C17

ø17*142mm

6pcs

60°

30-60mm

none

C239

ø40*120mm

42pcs

105°

70-200mm

512Hz

pipe sonde (optional)

C28L

ø28*260mm

12pcs

105°

70-200mm

self-levelling

512Hz pipe sonde



Optional

512Hz Receiver & Pipe Sonde

512R

512T1

512T



Size: 512l*110w*118hmm

Range: 4.5m



Size: ø16*45lmm

Range:4.5m



Size: ø22.5*48lmm

Range: 5m
