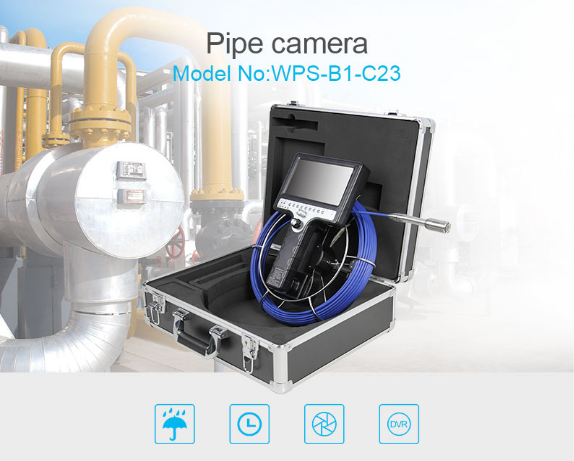

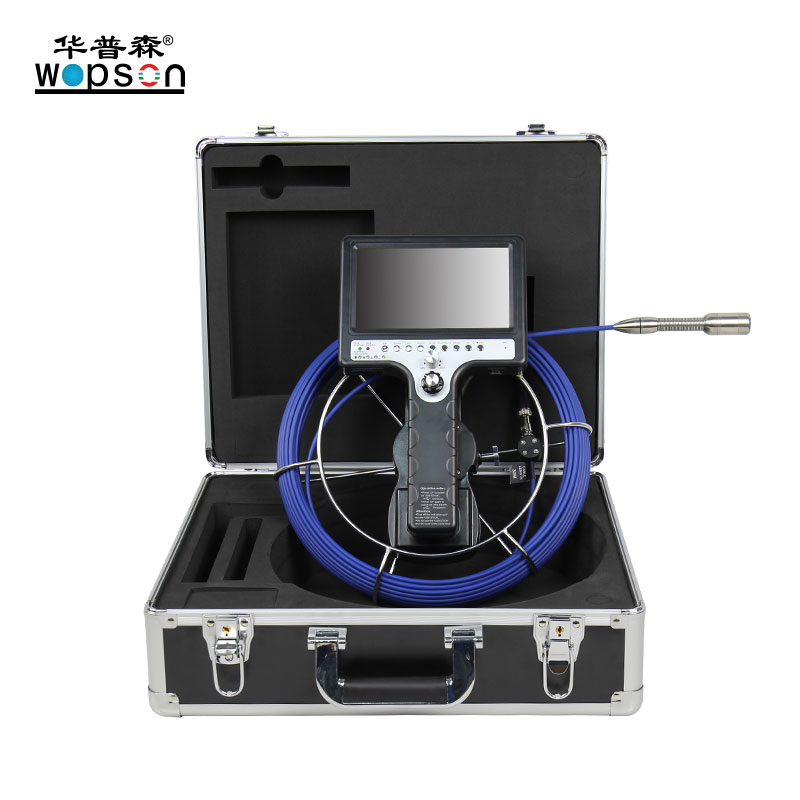

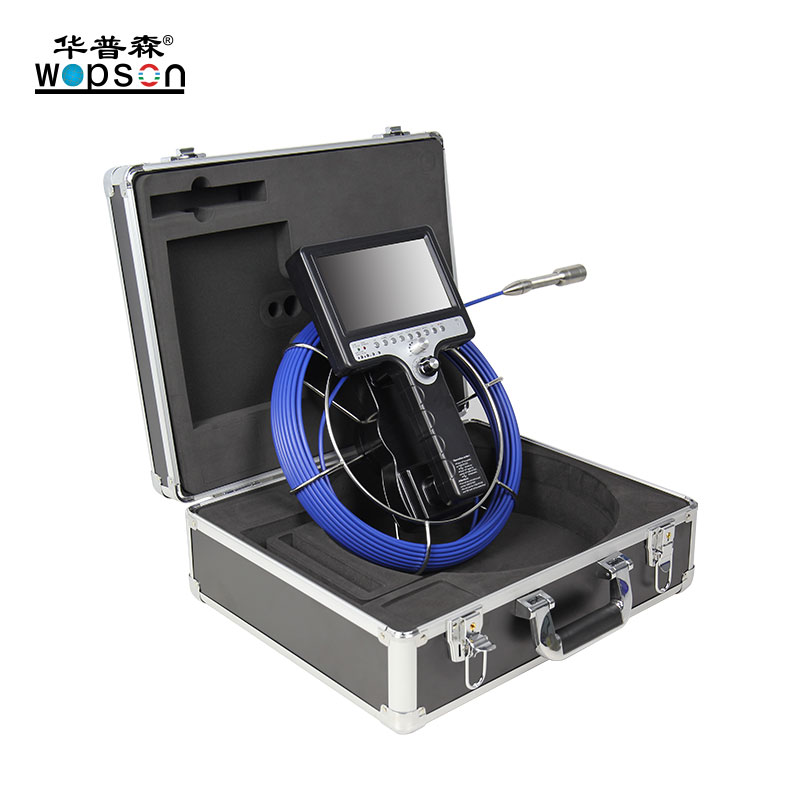

Hand Held Portable Snake Inspection Camera

Product Name Hand Held Portable Snake Inspection Camera
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 1000 sets / month
Dilivery Time Within 4 work days
Package 1 carton 49*21*47cm 9kg

Product Description


Specification

Camera & skid:

Camera size: ø23mm*120mm

Video resolution: 720*576

Leds: 12pcs

View angle: 105°

Waterproof: IP68

Skids: 40/80mm

Suitable pipe diameter: 30-150mm



Control box:

Storage medium: 8G SD card (max 256G) &USB stick

DVR pixels: 720*576

Movie format: MP4

10 levels digital zoom

Screen size: 7 inch TFT color

Screen pixels: 800*480



Cable reel:

Cable size: ø330*132(h)mm

Cable length: 30m

Cable diameter: ø5mm

Max length: 40m

Charger time: 5 hours

Running time: ≥7 hours

Case:

Size: L440*W395*H165mm

Case material:

Fire board and aluminum alloy




Features

1 Waterproof and Stainless steel Cam

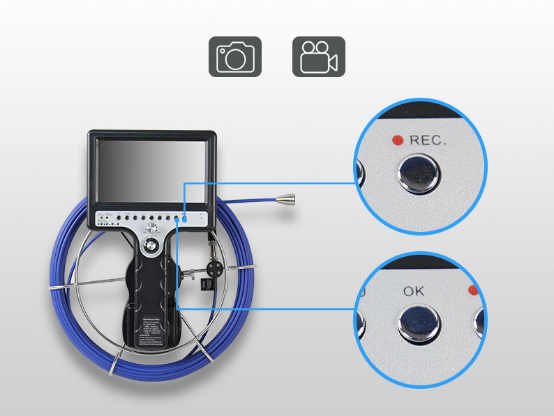

2 One-touch to Record and Take Picture

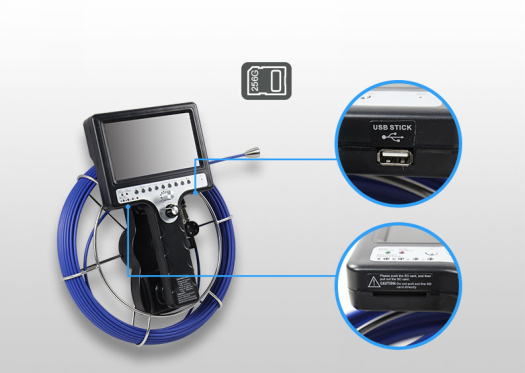

3 Supporting max 256G SD card & USB Stick

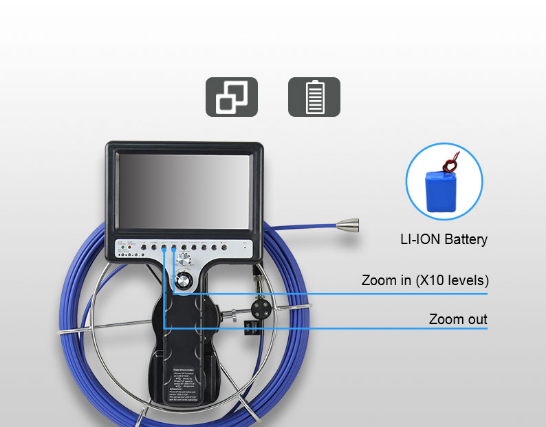

4 Zoom function (x10 levels) & 7-hour battery life



Operation video or Strength video


Optional
Camera heads (720*576  waterproof IP68)


Model

Size

LEDs

View angle

Suitable pipe diameter

Other function

C17

ø17*142mm

6pcs

60°

30-60mm

none

C23AB

ø23*160mm

12pcs

60°

30-150mm

self-levelling

C28

ø28*156mm

12pcs

105°

70-200mm

self-levelling

512Hz transmitter(optional)

Optional

Cable& camera head

X-101SCJ-C12

X-106SCJ


Size: ø12*115mm

View angle: 65°

Waterproof: IP68

Leds: 6pcs

Suitable pipe diameter: 20-45mm


Size: ø6*48mm

View angle: 60°

Waterproof: IP66

Leds: 4pcs

Suitable pipe diameter: 10-40mm

Optional

512Hz Receiver & Transmitter

512R

512T1

512T

Size: 512L*110W*118Hmm

Range: 4.5m

Size: ø16*45Lmm

Range:4.5m

Size: ø22.5*48Lmm

Range: 5m
