A Simplified pipe camera

  • Push Rod Basic Sewer Inspection Camera with DVR
  • Push Rod Basic Sewer Inspection Camera with DVR
  • Push Rod Basic Sewer Inspection Camera with DVR

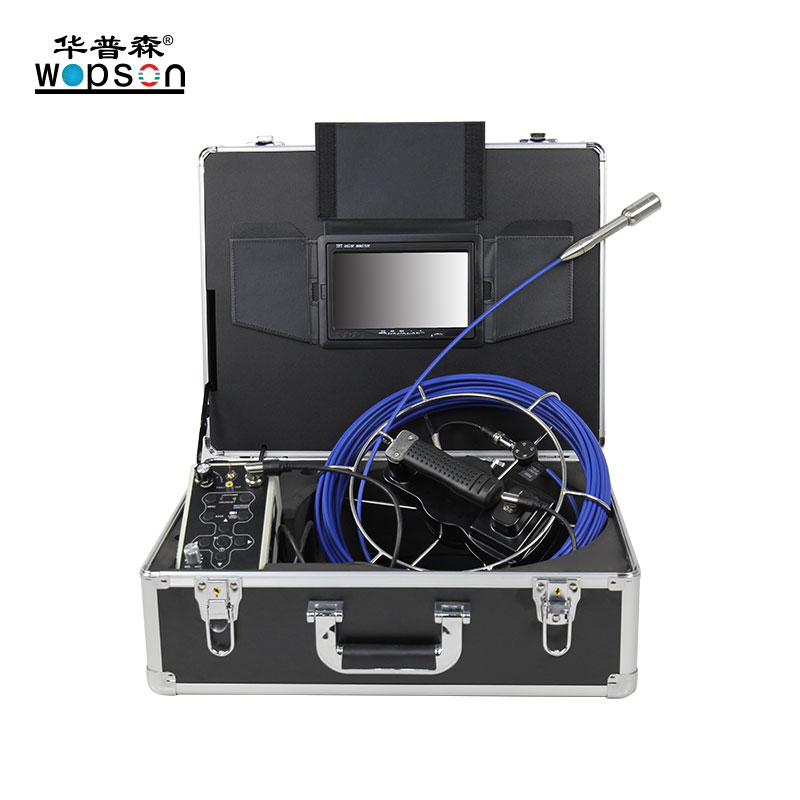

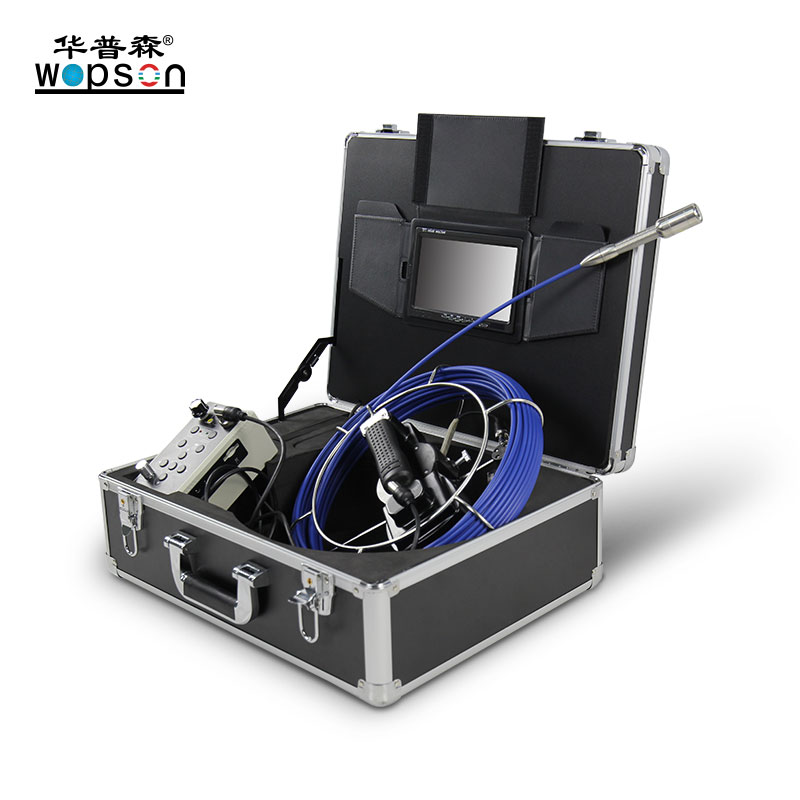

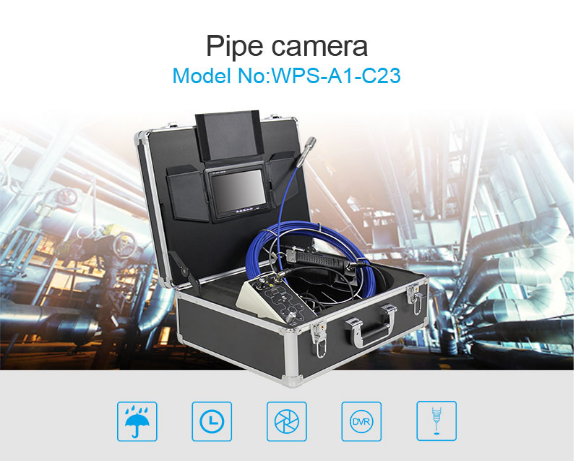

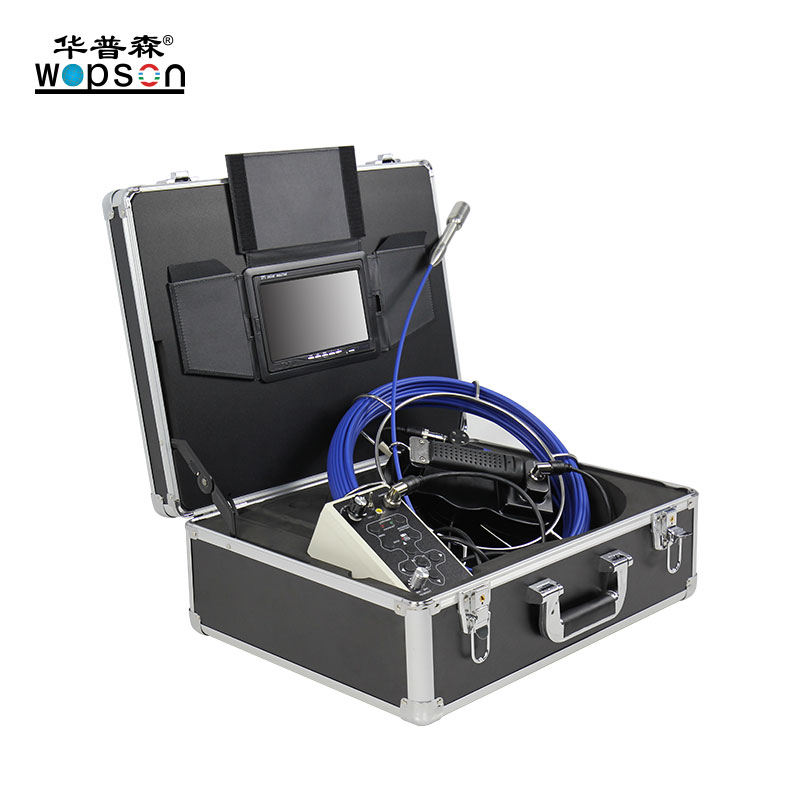

Push Rod Basic Sewer Inspection Camera with DVR

Product Name Push Rod Basic Sewer Inspection Camera with DVR
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 1000 sets / month
Dilivery Time Within 4 work days
Package 1 carton 49*21*47cm 11kg

Product Description

23mm camera, 20/50m camera, 30-150 mm pipe, optional 6mm, 12 mm, 17mm, 28mm camera.

One touching video/audio record and image capture, support max 256G  SD card or USB stick.

10x digital zoom function, 7-hour battery life.

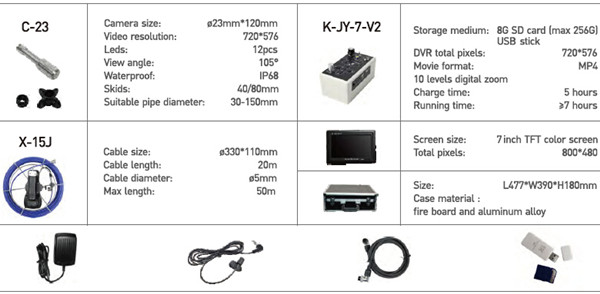

Specification

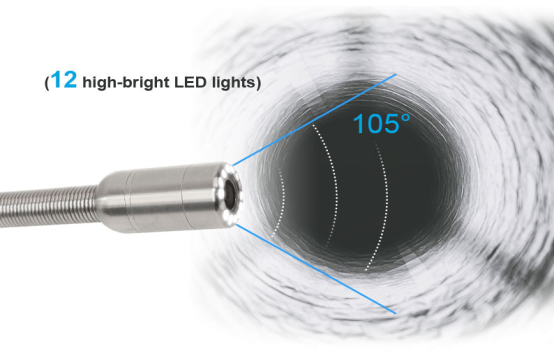

Push Camera & skid:

Camera size: ø23mm*120mm

Video resolution: 720*576

Leds: 12pcs

View angle: 105°

Waterproof: IP68

Skids: 40/80mm

Suitable pipe diameter: 30-150mm

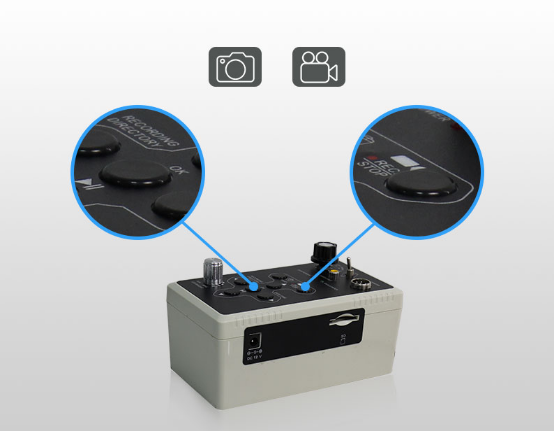

Control box:

Storage medium:

8G SD card (max 256G)

DVR total pixels: 720*576

Movie format: MP4

10 levels digital zoom

Charger time: 5 hours

Running time: ≥7 hours

Cable reel:

Cable size: ø330*110mm

Cable length: 20m

Cable diameter: ø5mm

Max length: 50m



Display screen:

Screen size: 7 inch TFT color

Screen pixels: 800*480

Case:

Size: L477*W390*H180mm

Case material:

Fire board and aluminum alloy



Features

1 Waterproof and Stainless steel Push Camera

2 One-touch to Record and Take Picture



3 Supporting max 256G SD card

4 Zoom function (x10 levels) & 7-hour battery life


Operation video or Strength video


Optional

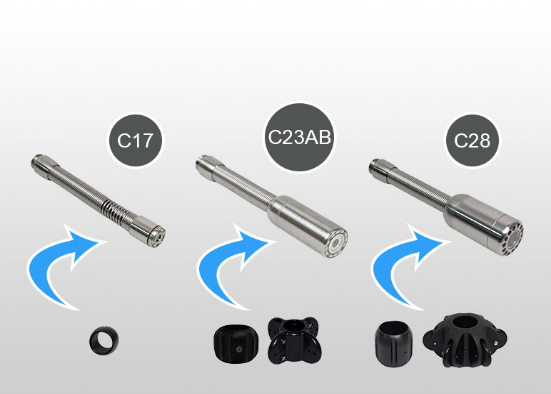

Push Camera (720*576  waterproof IP68)


Model

Size

LEDs

View angle

Suitable pipe diameter

Other function

C17

ø17*142mm

6pcs

60°

30-60mm

none

C23AB

ø23*160mm

12pcs

60°

30-150mm

self-levelling

C28

ø28*156mm

12pcs

105°

70-200mm

self-levelling

512 hz transmitter

(optional)

Optional

Push Camera Cable

X-151CJ-C12

X-156CJ


Size: ø12*115mm

View angle: 65°

Waterproof: IP68

Leds: 6pcs

Suitable pipe diameter: 20-45mm


Size: ø6*48mm

View angle: 60°

Waterproof: IP66

Leds: 4pcs

Suitable pipe diameter: 10-40mm



Optional

512hz locator & 512 hz Transmitter

512R

512T1

512T

Size: 512L*110W*118Hmm

Range: 4.5m

Size: ø16*45Lmm

Range:4.5m

Size: ø22.5*48Lmm

Range: 5m
