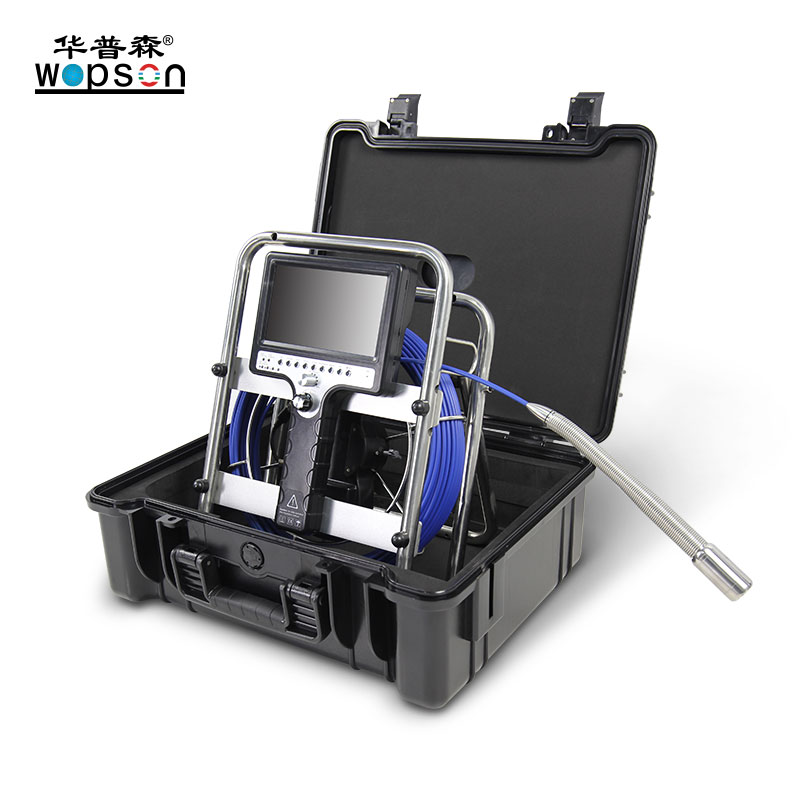

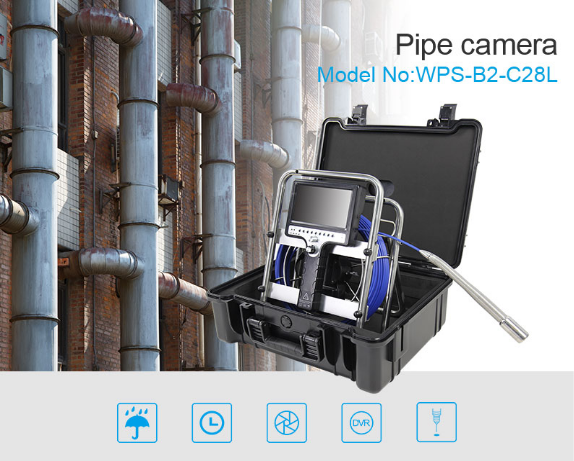

Strap Stand Reel Video Inspection Camera

Product Name Strap Stand Reel Video Inspection Camera
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 1000 sets / month
Dilivery Time Depend on quantity
Package 1 carton 52*21*45cm 13.5kg

Product Description

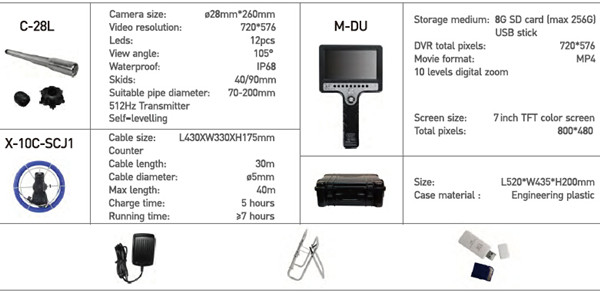

Specification

Camera & skid:

Camera size: ø28mm*260mm

Video resolution: 720*576

Leds: 12pcs

View angle: 105°

Waterproof: IP68

Skids: 40/90mm

Suitable pipe diameter: 70-200mm

512Hz transmitter

Control box:

Storage medium: 8G SD card (max 256G) &USB stick

DVR pixels: 720*576

Movie format: MP4

10 levels digital zoom

Screen size: 7 inch TFT color

Screen pixels: 800*480



Cable reel:

Cable size: L430*W330*H175mm

Counter

Cable length: 30m

Cable diameter: ø5mm

Max length: 40m

Charger time: 5 hours

Running time: ≥7 hours

Case:

Size: L520*W435*H200mm

Case material:

Engineering plastic




Features

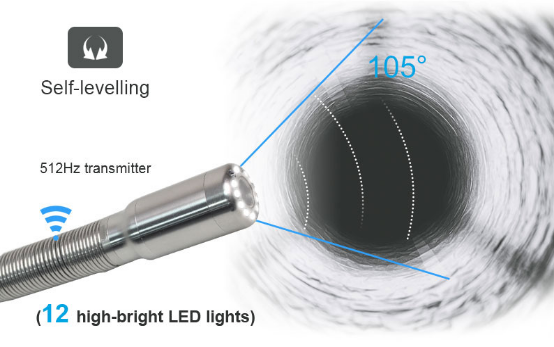

1 Waterproof & Stainless steel & Self level Cam & sonde

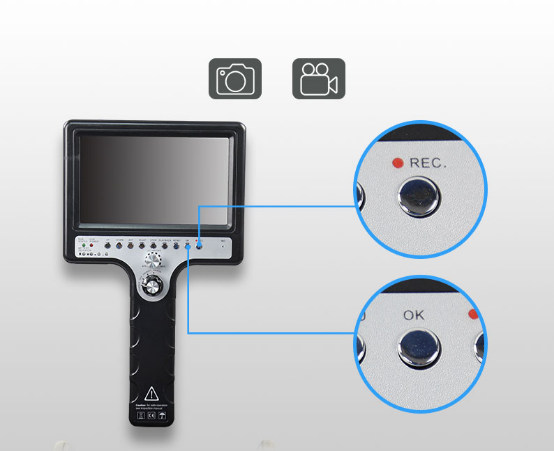

2 One-touch to Record and Take Picture

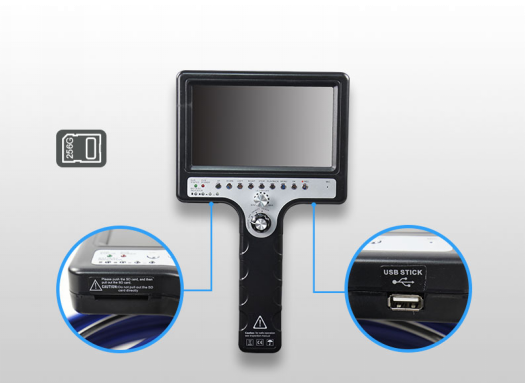

3 Supporting max 256G SD card or USB stick

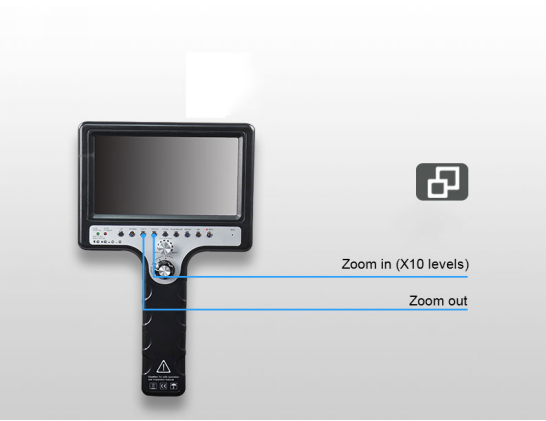

4 Zoom function (x10 levels) & 7-hour battery life

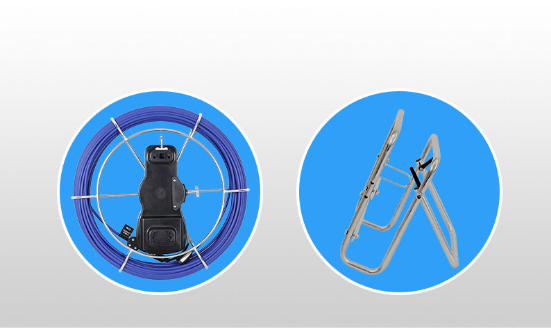

5 Cable m/ft counter and Stand reel



Operation video or Strength video



Optional

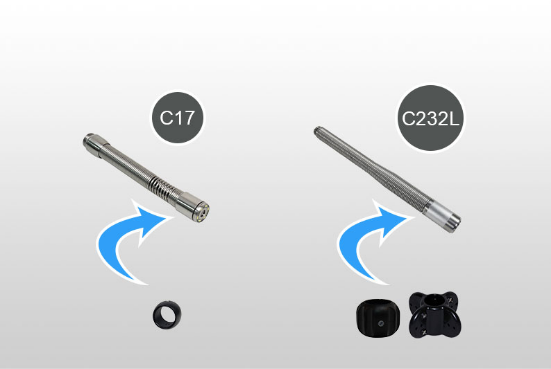

Camera head


Model

Size

LEDs

View angle

Suitable pipe diameter

Other function

C17

ø17*142mm

6pcs

60°

30-60mm

none

C232L

ø23*240mm

12pcs

105°

70-200mm

512Hz transmitter

Optional

Cable& camera head

X-151CJ-C12

X-156CJ

Size: ø12*115mm

View angle: 65°

Waterproof: IP68

Leds: 6pcs

Suitable pipe diameter: 20-45mm


Size: ø6*48mm

View angle: 60°

Waterproof: IP66

Leds: 4pcs

Suitable pipe diameter: 10-40mm

Optional

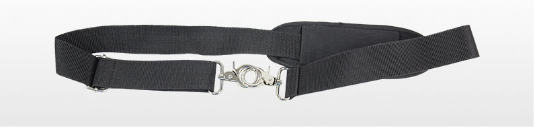

Belt


Optional

512Hz Receiver & Transmitter

512R

512T1

512T



Size: 512l*110w*118hmm

Range: 4.5m



Size: ø16*45lmm

Range:4.5m



Size: ø22.5*48lmm

Range: 5m
